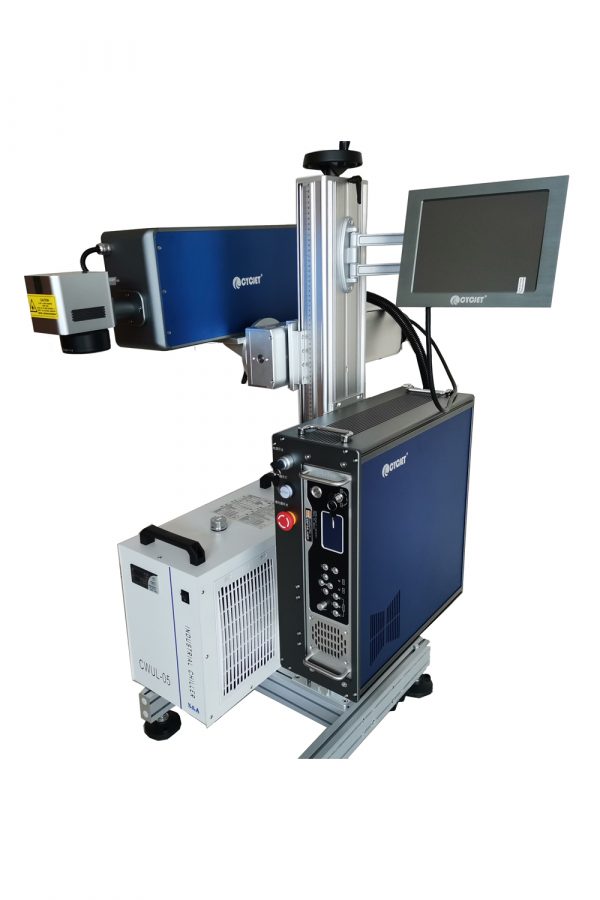

Garner U Series UV Laser Marking/QR Code Printing Machine 3W & 5W & 10W & 15W

1. Product Title

Garner U Series UV Laser Marking/ QR Code Printing Machine 3W & 5W & 10W & 15W

2. Product Transaction Information

Brand: CYCJET
Factory Price: Negotiate
Supply Ability: 200sets per Month
Port: Shanghai
Payment Terms: L/C, Cash, Western Union, T/T, Paypal
Min.Order Quantity: 1 set
ODM & OEM: Available, depends on annual sale quantity
Certification: CE, SGS, FDA
Warranty: 1 Year
Place of Origin: China (Mainland)
Trade terms: FOB, CNF, CIF, EXW

3. Product Description

With the laser technology continuous development, the UV laser source output power up to 40W. The high power UV laser marking machine or QR code printing machine, UV inkjet printer can satisfy many new applications which low power laser can not achieved. For example high speed online coding, Glass & Plastic Inner Carving, Electronic parts cleaning, PCB Cutting, PCB Marking, Drilling.
Compare to other laser source, UV laser printer has high electro-optical conversation rate, high quality laser beam, and with tiny spot size, ultra-fine marking. The core part crystal has longer service life than before, stable operation, high accuracy positioning & high efficiency working , even after long time running. The compact design is easy to install and assemble, working smoothly and stable. The UV laser marking quality is perfect, because of the UV laser beam carry less heat power, so the heat-affected zone is smaller, thermal effect is less, the material will not deformed and not burnt. The marking effect is fine and can be repeatedly processed, and the high-precision & tiny spot ensures the perfect marking result, and it is no contact marking, so the marking effect is permanent.

4. Application of QR Code Printing Machine/UV Inkjet Printer

  • Consumer Electronic

Consumer electronics products are upgrading in the direction of high precision, high thinness and high integration, and new materials such as thin film materials, hard and brittle transparent materials and special thin metal materials have been applied on a large scale. As a non-contact laser processing technology, it is an ideal process for the above-mentioned new material processing due to its unique advantages such as high efficiency, high precision, small thermal effect and space selectivity. For the cutting, drilling, marking, surface treatment and stripping of these materials, we offer cost-effective lasers, complete solutions and professional technical support. For the cutting, drilling, marking, surface treatment and stripping of these materials, we offer cost-effective lasers, complete solutions and professional technical support.

  • Glass surface & inner carving

UV laser coding machine, UV inkjet printer or QR code printing machines in the glass industry is expanding, because UV laser marking machine could get a perfect marking on the glass, whatever surface and inner. QR code printing machines are better than any other laser types, such as CO2 Laser, Green Laser Printer etc. The customer could mark any information on the glass surface or inside of the glass, they could make the glass product as an unique art ware.

  • Plastic Pipes Extrusion

Some material like Color PE Pipe, PPR, Silicone, the surface can not get good marking or no marking after normal laser beam burned, such as Fiber, CO2 laser. Because the laser wavelength and other aspects, UV inkjet printer or QR Code printing machines can get perfect marking on these material, they have the sensitive reaction after light burning.

  • Electrical Cables. UV Flying laser marking machine can satisfy high speed marking for electrical cables, which fiber and co2 can not match it. Material like HDPE color cable, MDPE, LDPE, should use UV laser marker to mark it, max speed up to 400m/min.



  • Electronic spare parts & Wall Switch

Laser coding on electronic spare parts and wall switch become a trend, marking quality better than inkjet printing and silk screen printing.

  • Food Industry

The QR code printing machine can generate traceability QR Code or DM code, each code has an unique ID. After laser marking step, the industrial camera will read the message and upload information to data base. It will help the manufacturer or agent to manage goods quality and cargo movement, the end user could identify it is real or fake brand, once use cell phone scan the code.

5. Technical Specification of Garner U Series UV Laser Marking/QR Code Printing Machine

   Model       Item                                 GARNER UV Fly Laser with Water-cooling System
Laser Machine Features Machine Body Complete Aluminum Structure
Laser Type UV   Laser
Output Power ≥5W
Laser Wavelength 355nm
Scanning System High Precision double scanning system
Marking speed ≤10000mm/s
Controller 13'' Color Touch Screen
Operating System Linux
Cooling System Water Cooling
Marking Specifications Focusing Lens Focus distance 145mm (Optional)
Marking Line Type Dot matrix, vector font can be printing
Minimum Line Size 0.01mm
Repeated Positioning Accuracy 0.003mm
Marking Area Standard 110mm×110mm (Optional)
Positioning Red light positioning and automatic focus
Line Printing Unlimited
Positioning mode Multi-lines within marking range
Production Line Speed 0-180m/min (based on different materials)
Supported Types Font English, logo, number, date, time, bar code, etc...
File Format PLT/CNF
Bar Code CODE39、CODE128、CODE126、QR
Machine Parameters Power Supply 110-240V
Power Consumption 1100W
Net Weight 135KG
Suggest Working Environment humidity≤80%; non-condensing; no vibration
15℃-30℃

The Quality Standard of CYCJET Fly Laser Marking Machine/UV Inkjet Printer

GB 7247-87 Radiation safety of laser products, requirements for equipment classification and user's Guide
GB10320-88 Electrical safety of laser equipment and facilities
ISO 9000-3 International software standards
GB/T12123-89 Sales packaging process
IEC 536 Classification of electrical and electronic equipment for protection against electric shock
   Model       Item                                 GARNER UV Fly Laser with Water-cooling System
Laser Machine Features Machine Body Complete Aluminum Structure

6. Garner U Series UV Laser Marking/QR Code Printing Machine Details



  • UV Laser Source: Famous Imported Laser source, high quality and durable working condition. Stronger output laser power can apply more
    application.





  • High Perfermance Laser Scanner System: Galvo Laser scanner, max jump speed up to 15000ms, support high speed online laser marking. The laser scanner can print at any angle through the 360 degree device.







  • Encoder: The main spare parts which support flying laser marking, connect the production line and detect moving speed and send the signal
    to PC, then controller send correct signal to scanner match speed.







  • Fiber Sensor: Used to detect product on the conveyor belt, then send signal to controller once the product pass or reach the detect area







  • Industrial Controller: High data-handing capacity laser printer controller, support complicated message editing and marking. Support high speed QR CODE marking, quantity appox 1000pcs max, under 8*8mm size.





7. Packaging & Shipping of Garner U Series UV Laser Marking/QR Code Printing Machine

  1. Packed by brand new wooden case, the woods material proceeded by high temperature steam. It can satisfy most of Country customs requirement.
  2. Size of package: 195*96*101cm, G.W: 160KGS
